The Aerofoil Sun Louver is meticulously engineered to optimize natural light while minimizing heat gain, making it an ideal solution for energy-efficient buildings.
AMS as a outdoor sun-shading products manufacturer, aluminum blinds can be fully custom made or supplied ready-made. From bespoke solutions to ready-made products, each product features:
● Shade and light control
● Privacy and security
● Energy efficiencies
● Maximum natural air flow and ventilation
● Weather protection from water and debris during rain, wind and storms
● Noise reduction
● Vision from inside and out as required

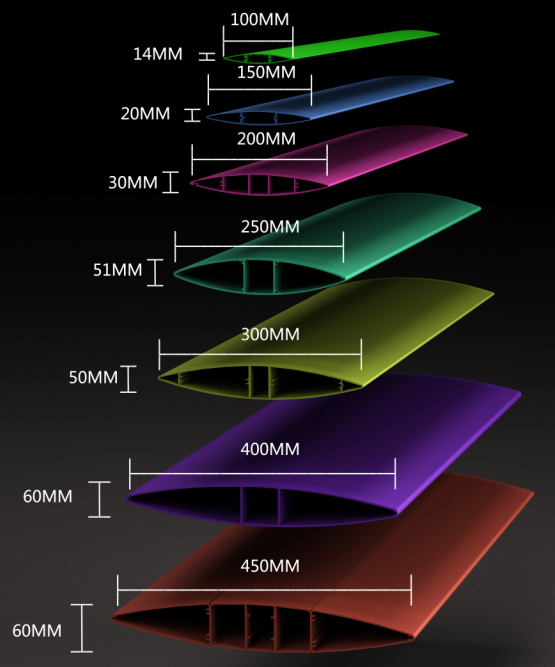

Exterior adjustable aerofoil aluminum sun louvres are extruded aluminum, mainly in elliptical shape and available in blades size: 100MM/150MM/200MM/250MM/300MM/400MM/450MM/600MM.
Maximum span is 6meter, depending on wind load and clients' requirement.
Exterior movable louver shutters are designed according to the latitude and longitude of the sun, Adjust smoothly and regulate the inside day-lighting and heat gain at any moment of the day. It can keep out up to 80% of the heat of the sun, thus allowing the reduction of air-conditioning costs by as much as 30%.

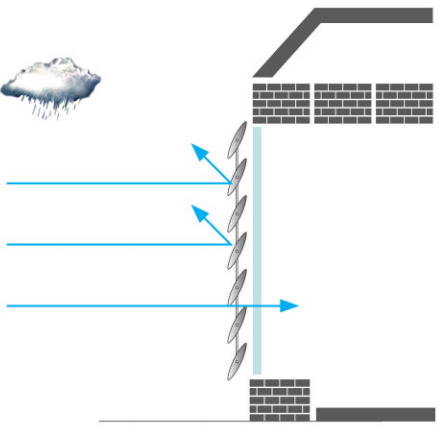

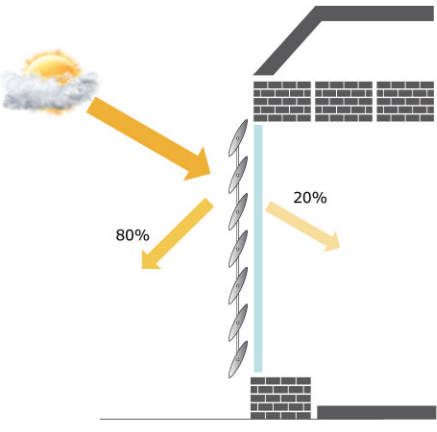

－ Protecting you during the rain and snow. － Sun-Shade coefficient 0.21
－ Louvers rotated 0-90 degree to enjoy the cool breeze. － Heat radiation can be reduced about 80%
Horizontal sun louver architectural aerofoil profile aluminum louver for facade curtain wall are available in a variety of colors. The frame and blades are made of powder-coated or anodized aluminum or PVDF coatings. A variety of blade control options include: Fixed/Motorized/Manual.

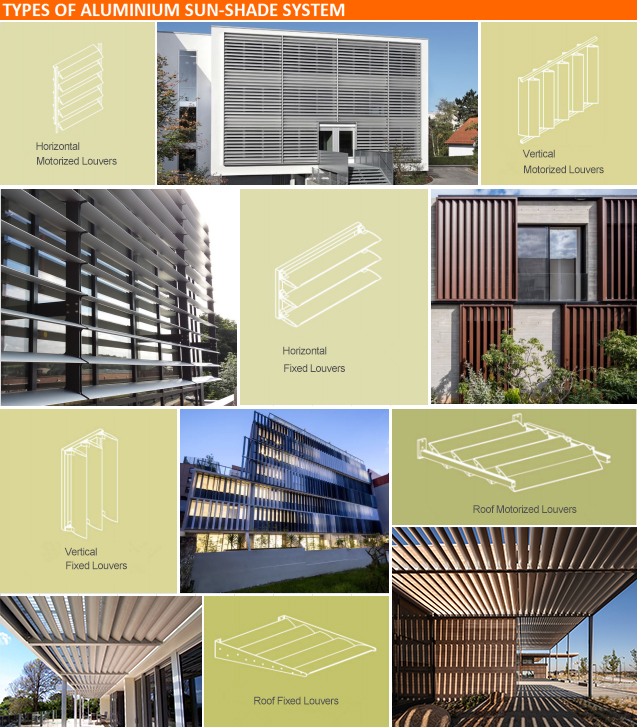

Aluminum aerofoil sun louver can be installed vertical, horizontal or angled. They can be installed in a fixed position or can be adjustable manually, by motor with switch control. It is suitable for various of sun shading of modern commercial buildings large-scale glass curtain wall, windows, and ceiling roof as awning, with grand building structure.
Experience the perfect blend of style and performance with AMS's metal buildings adjustable louvers, the ultimate choice for architects and designers seeking to elevate their projects to new heights.
